ASUS IoT announced the PE1000U on February 5, 2026—a compact DIN-rail-mountable edge computer powered by Intel Core Ultra Series 2 processors. Measuring just 63 x 110 x 160mm, this palm-sized industrial PC features extensive I/O connectivity, fanless operation, IP40 rating, and US MIL-STD-810H certification for 5Grms vibration resistance, making it ideal for autonomous mobile robots, collaborative robotics, and computer vision applications in harsh environments.
ASUS IoT PE1000U Industrial PC: Specifications & Use Cases
Product Overview
| Feature | Specification |
|---|---|
| Model | ASUS IoT PE1000U |
| Processor | Intel Core Ultra 265U or 235U |
| Dimensions | 63 x 110 x 160mm (palm-sized) |
| Mounting | DIN-rail compatible |
| Cooling | Fanless with wave-pattern aluminum heatsink |
| Rating | IP40-rated, MIL-STD-810H (5Grms vibration) |
| Operating Temp | -25°C to 70°C |
| Power Input | 9-36V DC with ignition control |
| USB Ports | 4 ports (front-access) |
| COM Ports | Up to 4 ports |
| Ethernet | Up to 4 ports (two 2.5G default) |
| Display Outputs | DisplayPort + HDMI (dual 4K support) |
| Availability | Now available worldwide |
Intel Core Ultra Power in Compact Form
The PE1000U leverages Intel Core Ultra Series 2 processors (265U or 235U variants) featuring hybrid CPU, GPU, and NPU acceleration. This architecture delivers high single-thread responsiveness essential for motion control while simultaneously accelerating AI inference and graphics workloads—critical for robotics applications requiring real-time perception and decision-making.
The hybrid design enables deterministic compute power for motion planning alongside parallel processing for computer vision tasks, eliminating the need for separate compute modules.
Extensive I/O for Edge Intelligence

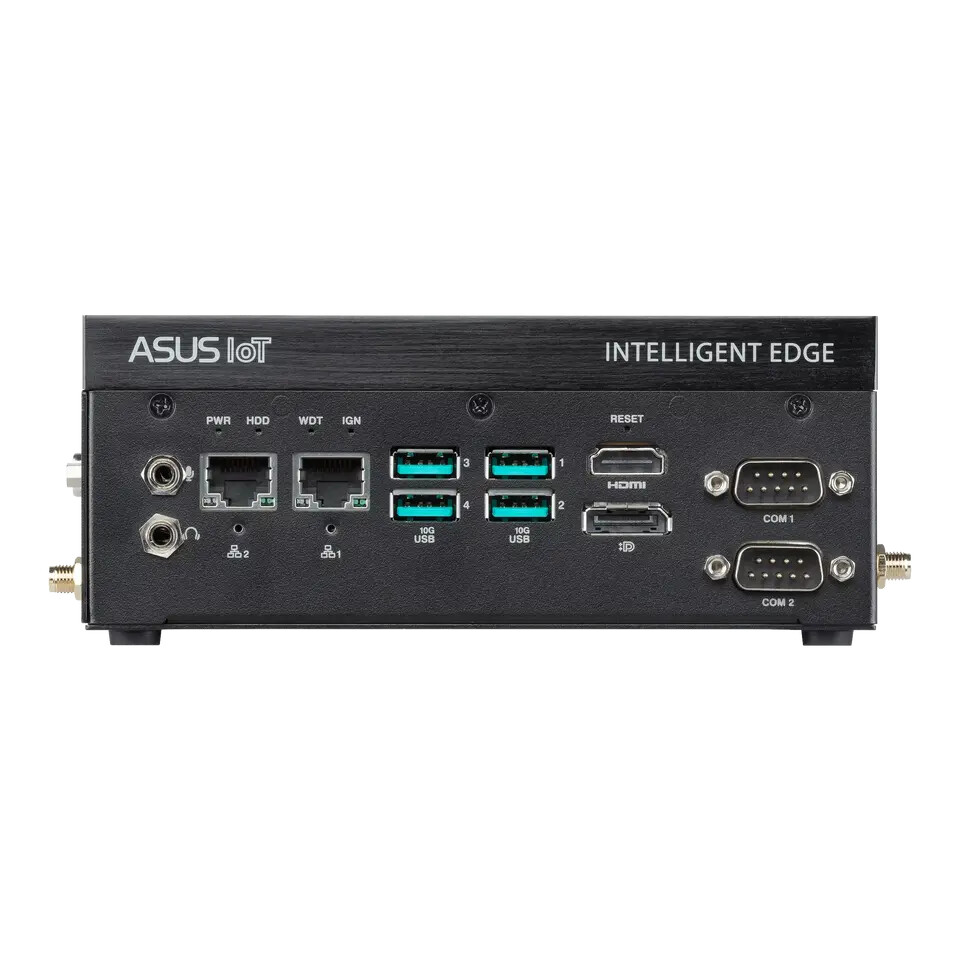

Front-access connectivity simplifies sensor, camera, and network integration with four USB ports, up to four COM ports, and up to four Ethernet ports (two 2.5G by default). The onboard dual CAN Bus and isolated DIO module enhance deterministic control critical for industrial automation. DisplayPort and HDMI outputs support dual 4K displays for HMI interfaces or machine-vision monitoring.
This extensive I/O eliminates expansion modules typically required in competing industrial PCs, reducing system complexity and potential failure points.
Advanced Fanless Thermal Architecture
PE1000U’s key differentiator is its wave-pattern aluminum heatsink serving as a direct thermal conduit from CPU and memory to the exterior surface. The completely sealed enclosure with no fans or vents prevents dust ingress while maintaining silent operation—crucial for clean-room environments and noise-sensitive applications.
Passive cooling ensures long-term reliability in challenging locations from factory floors to semi-outdoor kiosks, even under high ambient temperatures or continuous vibrations. The MIL-STD-810H certification validates performance under extreme conditions.
Optimized for AMR & Collaborative Robotics
The compact footprint and fanless design make PE1000U ideal for autonomous mobile robots where space and weight constraints are critical. Four LAN ports, dual CAN Bus, and WiFi 6E or 5G connectivity provide seamless integration with LiDAR, cameras, motor controllers, and fleet-management platforms.
For collaborative robots (cobots), the 5Grms vibration tolerance and screw-lock connectors ensure mission-critical stability during dynamic movements. The Intel Core Ultra processor supplies real-time perception and motion planning capabilities cobots require.
Computer Vision & Laser Processing Applications
In laser processing and industrial vision systems, the DIN-rail form factor with single-side I/O simplifies cabinet wiring and installation. Up to four independent Ethernet ports accommodate multi-camera arrays for 360-degree inspection or stereoscopic vision. The isolated DIO can trigger strobes and illumination precisely without introducing electrical noise that degrades image quality.
On-Vehicle Deployment Ready
Wide 9-36V DC power input with built-in ignition control makes PE1000U suitable for mobile applications including delivery robots, agricultural equipment, and construction machinery. The -25°C to 70°C operating range ensures functionality across climates from frozen warehouses to desert construction sites.
