Samsung’s GDDR6W memory offers 2x capacity over GDDR6X and up to 1.4TB/s bandwidth

The South Korean giant’s innovation isn’t stopping here because they have recently launched the new GDDR6W memory to “Bridge Between Worlds,” technically yes. Offering almost double the capacity and bandwidth over the last GDDR6X memory, based on cutting-edge Fan-Out Wafer-Level Packaging (FOWLP) technology.

Dubbed by Samsung to be the industry’s first next-generation graphics DRAM technology, GDDR6W brings exceptional improvements over the GDDR6 memories that maxed out to 24Gbps and Samsung is the one developing the fastest one. Most of these high-speed memories are used by various GPU makers to significantly uplift performance in games and productivity workloads which love bigger & faster VRAM.

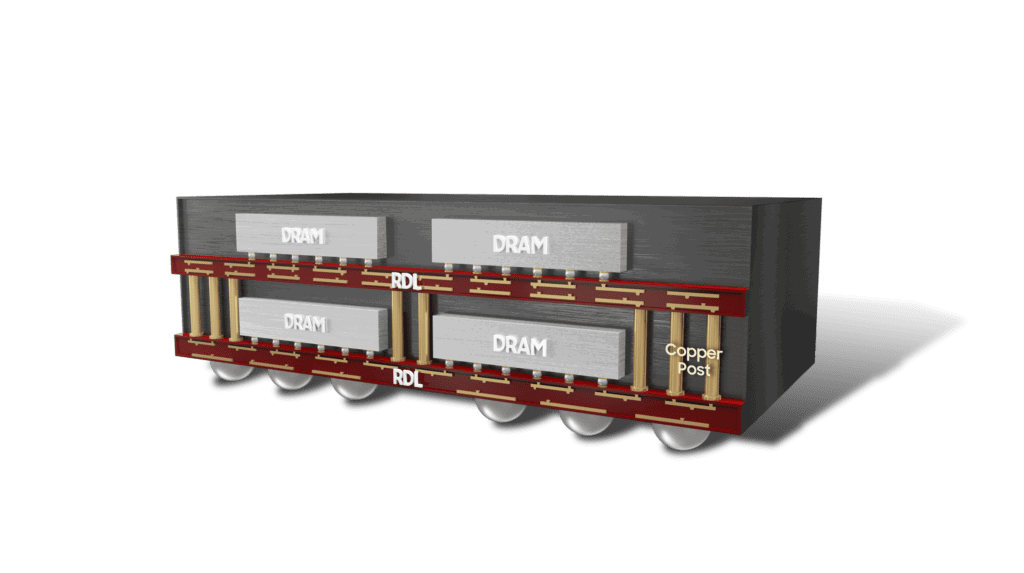

So, having the unchanged footprint these new GDDR6W memory chips will have the same production processes but they can be equipped with twice as many memory chips in an identical-size package, thanks to the use of the FOWLP construction and stacking technology.

Samsung’s GDDR6W memory offers 2x capacity over GDDR6X and up to 1.4TB/s bandwidth

Currently, because of this, the graphic DRAM capacity has increased from 16GB to 32GB, while bandwidth and the number of I/Os have doubled from 32 to 64. In other words, the area required for memory has been reduced by 50% compared to previous models.

- Advertisement -TechnoSports-Ad

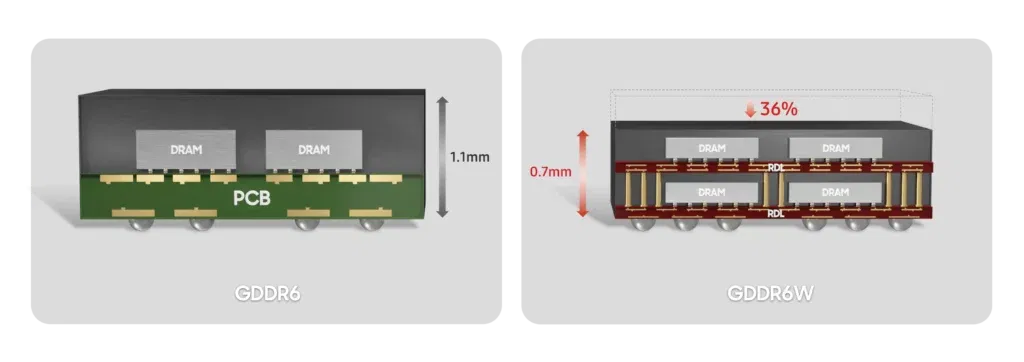

The height of the FOWLP-based GDDR6W is 0.7mm – 36% slimmer than the previous package with a height of 1.1mm. And despite the chip being multi-layered, it still offers the same thermal properties and performance as the existing GDDR6. Unlike GDDR6, however, the bandwidth of the FOWLP-based GDDR6W can be doubled thanks to the expanded I/O per single package.

Samsung’s GDDR6W memory offers 2x capacity over GDDR6X and up to 1.4TB/s bandwidth

The newly developed GDDR6W technology can support HBM-level bandwidth at a system level. HBM2E has a system-level bandwidth of 1.6TB/s based on 4K system-level I/O and a 3.2Gpbs transmission rate per pin. GDDR6W, on the other hand, can produce a bandwidth of 1.4TB/s based on 512 system-level I/O and a transmission rate of 22Gpbs per pin. Furthermore, since GDDR6W reduces the number of I/O to about 1/8 compared with using HBM2E, it removes the necessity of using micropumps. That makes it more cost-effective without the need for an interposer layer.

GDDR6WHBM2E
The number of System Level I/O5124096
Pin Transmission Speed22Gbps3.2Gpbs
System Level Bandwidth1.4TB/s1.6TB/s

● System Level: Using graphics cards as an example, setting reference points of 8 package GDDR6W and 4 package HBM.

- Advertisement -TechnoSports-Ad

“By applying an advanced packaging technology to GDDR6, GDDR6W delivers twice the memory capacity and performance of similar-sized packages,” said CheolMin Park, Vice President of New Business Planning, at Samsung Electronics Memory Business. “With GDDR6W, we’re able to foster differentiated memory products that can satisfy various customer needs – a major step towards securing our leadership in the market.”

via Samsung Newsroom
