What if your smartphone could zoom like a professional camera without growing an inch thicker? That’s exactly what OPPO has pulled off with the Find X9 Ultra, launching in India on May 5, 2026. At the heart of it is a piece of engineering that’s genuinely never been done before in a smartphone — and once you understand how it works, you’ll never look at a phone camera the same way again.
Table of Contents
OPPO Find X9 Ultra Camera System — Overview
| Feature | Specification |
|---|---|
| Telephoto System | Quintuple Prism Periscope (QPPS) |
| Optical Zoom | 10x (≈230mm equivalent) |
| Periscope Module Size | 29mm compact footprint |
| Main Camera | 200MP Sony LYTIA 901 sensor |
| Secondary Telephoto | 200MP, 3x, 1/1.28-inch sensor |
| Ultra-Wide | 50MP |
| Stabilisation | Sensor Shift OIS |
| Video | 4K 60fps Dolby Vision (all lenses) |
| Camera Partner | Hasselblad |
| Image Engine | LUMO Image Engine |
The Problem With Traditional Periscope Zoom

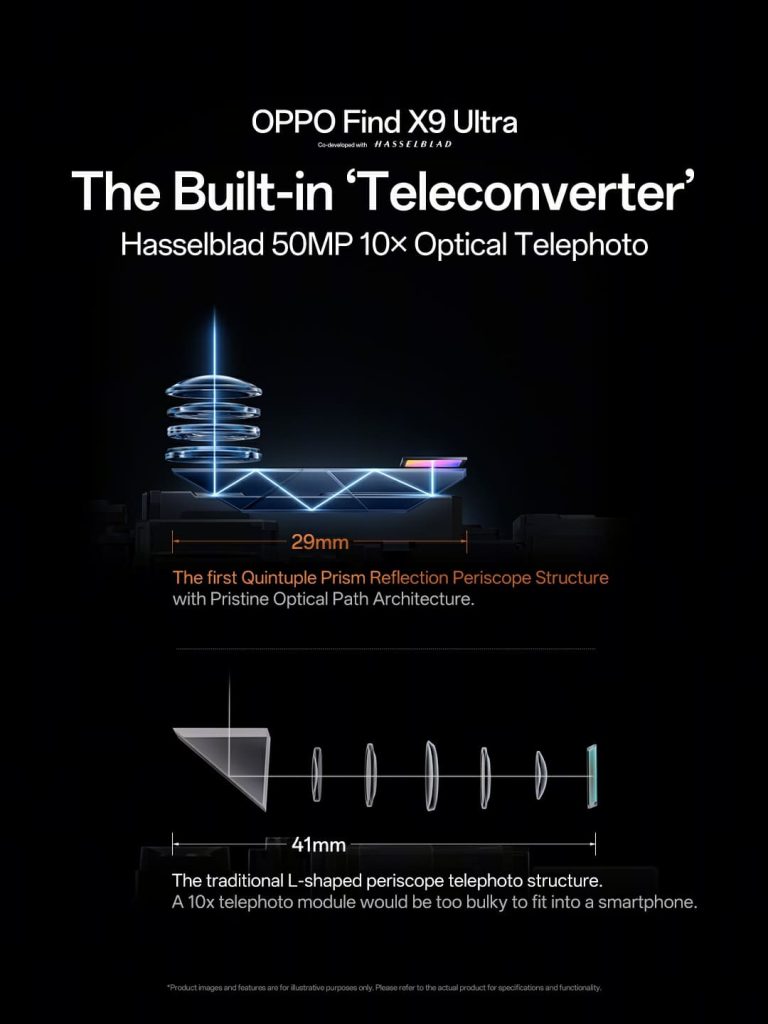

To appreciate what OPPO has done, you first need to understand what everyone else is doing. Most flagship smartphones today use a periscope lens system — a single prism that bends light sideways to create more optical room inside a slim body. It’s clever, but it’s also limited. A single reflection only buys you so much extra focal length before you hit a physical wall.

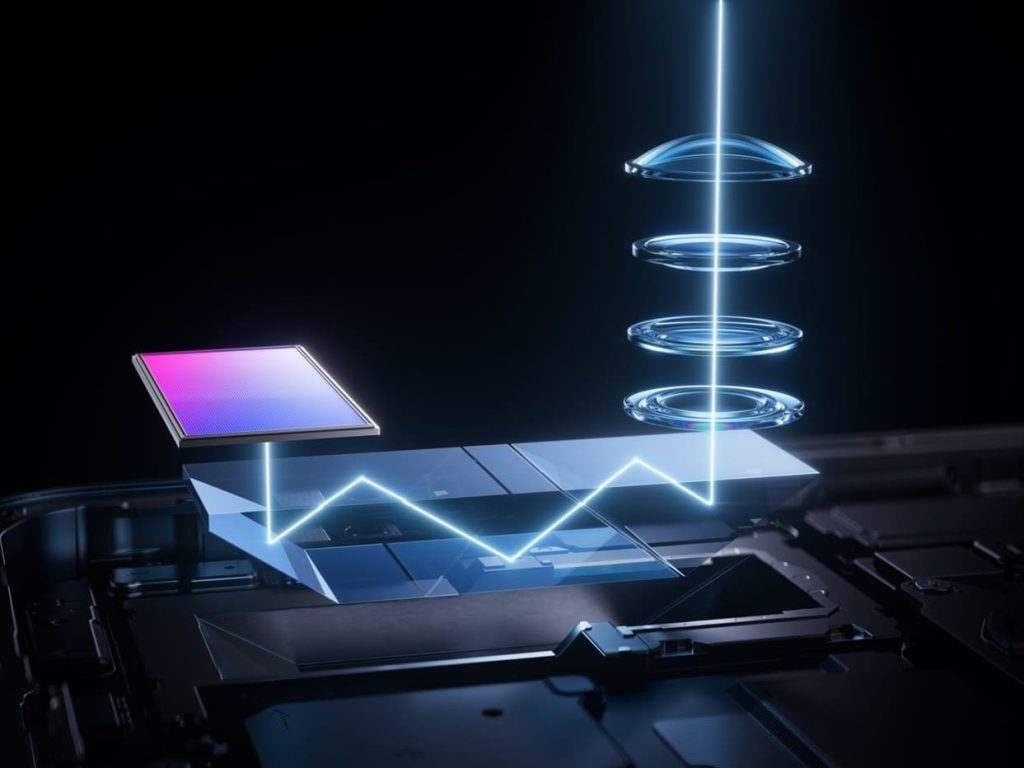

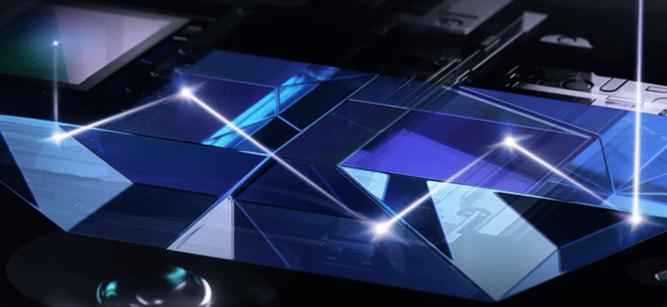

OPPO decided to blow past that wall entirely. Instead of one prism reflection, the Find X9 Ultra uses five. The Quintuple Prism Periscope Structure (QPPS) bounces light across five separate prism surfaces before it ever reaches the sensor, folding an extraordinarily long optical path into a module that still fits within a compact 29mm space. The result is a true 10x optical zoom delivering approximately 230mm equivalent focal length — from inside a smartphone. That’s a first in the industry, full stop.
For more smartphone camera tech deep-dives and flagship phone reviews, check out technosports.co.in.
Why More Prisms = Better Photos
Here’s what makes this meaningful in real-world terms. Optical zoom and digital zoom are fundamentally different things. Digital zoom is glorified cropping — the phone grabs a section of the image and stretches it, which destroys fine detail. Optical zoom actually moves light through physical lens elements, capturing genuine detail that was never there with digital methods.
Because the QPPS system extends the optical path physically, images at 10x retain authentic clarity, natural background compression, and the kind of subject separation you’d normally only see from a dedicated telephoto camera. Whether you’re shooting a performer from the back of a stadium or a bird perched across a lake, the image is resolved by the optics — not reconstructed by software.
Solving the Light & Stability Challenges
More prism reflections mean more potential problems — stray light, uneven transmission, and image degradation at higher magnifications are all real risks. OPPO addressed this head-on with the Pristine Optical Path Architecture, which incorporates a nanometer-scale diaphragm to block stray light and preserve optical purity throughout the five-reflection journey.
Stability is the other big challenge. At 10x magnification, a tiny hand tremor gets amplified dramatically. The Find X9 Ultra counters this with a Sensor Shift OIS system — rather than moving the lens, it moves the sensor itself to compensate, which is more precise and effective at extreme zoom levels. This keeps images sharp even when pushing into the 20x optical-quality zoom range.

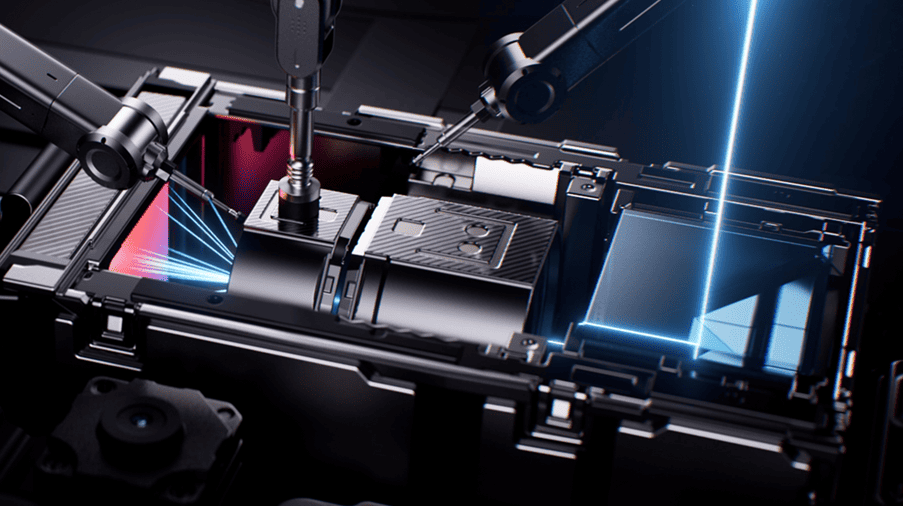

During assembly, every camera module undergoes Triple Active Optical Alignment, where high-precision instruments dynamically align the lens, prism, and sensor in real time to guarantee peak sharpness straight out of the factory.
The Full Hasselblad System Around It

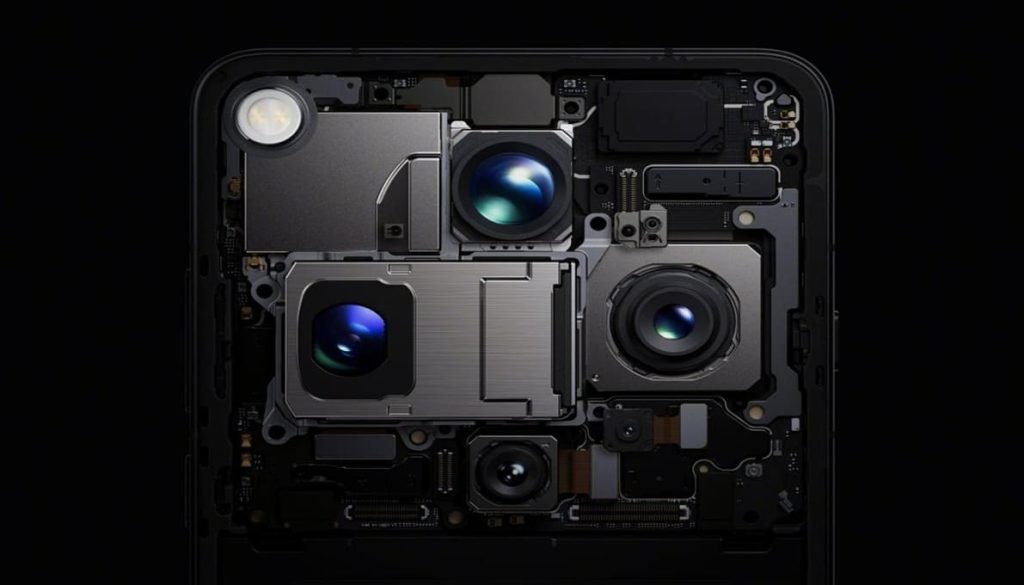

The QPPS telephoto doesn’t work in isolation. OPPO has built a complete Hasselblad Master Camera System around it, meaning every lens is tuned for consistency and natural colour rendering. The 200MP main camera with the Sony LYTIA 901 sensor handles everyday shooting at its absolute best. A second 200MP telephoto with a 1/1.28-inch sensor takes over for low-light portraits and close-up telemacro work. The 50MP ultra-wide rounds out the setup. Every single lens supports 4K 60fps Dolby Vision video — no exceptions.
The LUMO Image Engine ties it all together, handling colour, exposure, and detail refinement — but always as a finishing layer on top of what the optics have already captured, not as a substitute for them.
For the full OPPO Find X9 Ultra specs, pricing, and availability in India, visit technosports.co.in.
FAQs
Q: What makes OPPO’s QPPS technology different from regular periscope zoom in other flagships?
Unlike conventional single-prism periscope systems, OPPO’s Quintuple Prism Periscope Structure reflects light five times within a 29mm module, delivering true 10x optical zoom with far greater focal length and optical detail than any previous smartphone design.
Q: Does the OPPO Find X9 Ultra use AI or digital zoom to achieve its 10x zoom quality?
No — the 10x zoom on the Find X9 Ultra is purely optical, meaning it’s achieved through physical lens engineering rather than software interpolation or AI upscaling, resulting in genuinely sharper, more detailed long-range images.
