The ZOTAC Gaming GeForce RTX 5070 Ti AMP Extreme Infinity represents a bold step forward in GPU design, combining NVIDIA’s cutting-edge Blackwell architecture with ZOTAC’s signature overengineering. After extensive testing, this card proves itself as one of the most impressive RTX 5070 Ti variants available, though at a premium price point.
Table of Contents
Technical Specifications & Design
Core Specifications
The RTX 5070 Ti uses a GB203-300-A1 chip with 8,960 CUDA cores, 70 4th-gen RT cores, and 280 5th-gen Tensor cores. ZOTAC has applied a factory overclock of 60 MHz, pushing the boost clock to 2,512 MHz, significantly higher than NVIDIA’s reference specification of 2,452 MHz.
| Specification | ZOTAC RTX 5070 Ti AMP Extreme Infinity | RTX 5070 Ti Reference |
|---|---|---|
| CUDA Cores | 8,960 | 8,960 |
| Base Clock | 2,295 MHz | 2,300 MHz |
| Boost Clock | 2,512 MHz | 2,452 MHz |
| Memory | 16GB GDDR7 | 16GB GDDR7 |
| Memory Bus | 256-bit | 256-bit |
| Memory Bandwidth | 896 GB/s | 896 GB/s |
Build Quality & Aesthetics

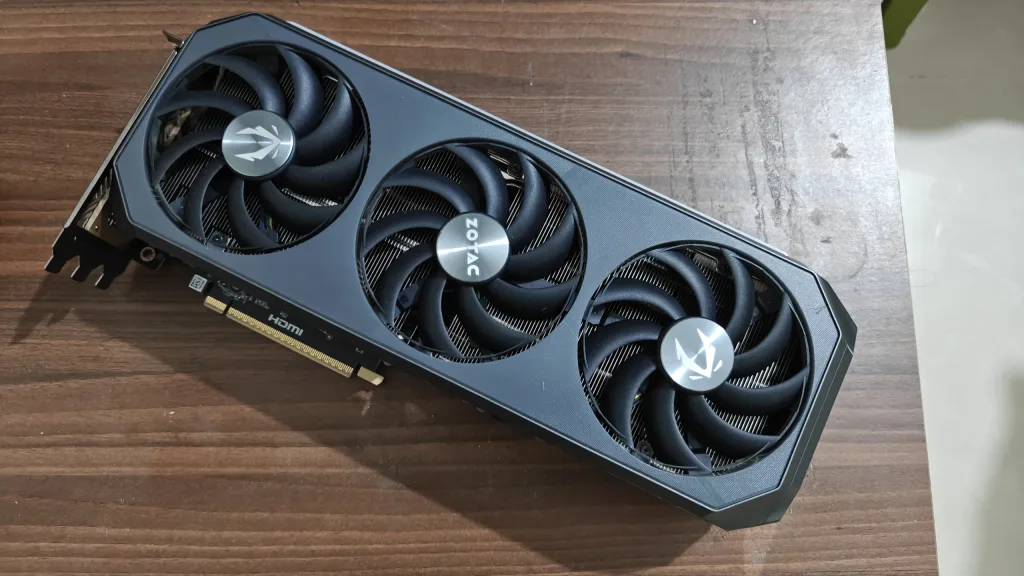

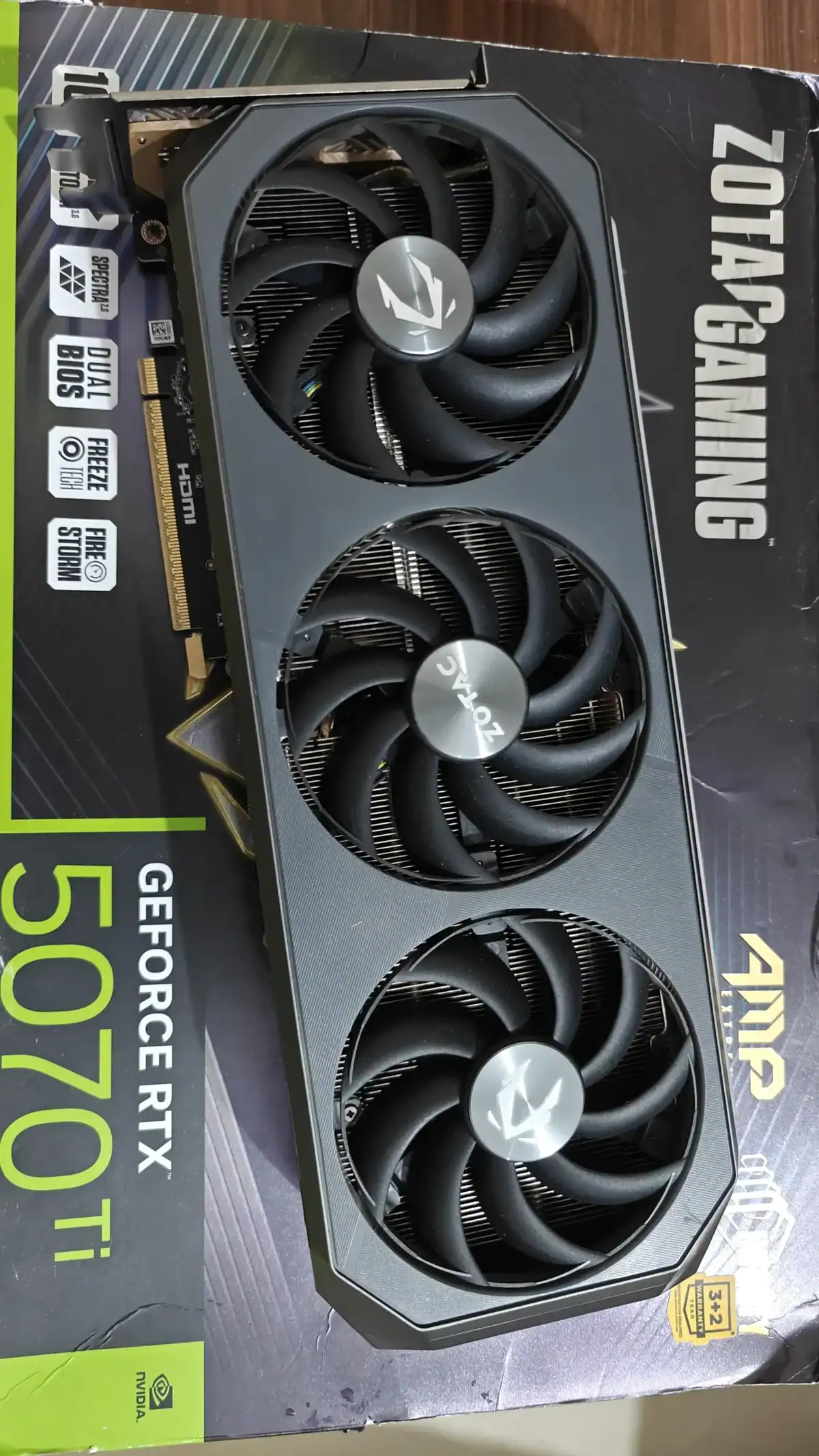

The card features excellent build quality with a quad-slot, triple-fan, all-metal cooling solution and mesmerizing RGB effects. The “Infinity” design language showcases ZOTAC’s premium approach, with elegant curves and a gorgeous RGB implementation that rivals the best custom cards in the market.
Physical Dimensions:
- Length: 355mm
- Width: 142mm
- Height: 78mm (4-slot)
- Weight: 2.1kg
The card requires a robust PSU and spacious case, but the cooling performance justifies the substantial footprint.
Gaming Performance Benchmarks
1440p Gaming Excellence
Our testing reveals the ZOTAC RTX 5070 Ti AMP Extreme Infinity as a 1440p powerhouse:
| Game | 1440p Ultra | 1440p + DLSS Quality | Performance vs RTX 4070 Ti Super |
|---|---|---|---|
| Cyberpunk 2077 | 82 FPS | 124 FPS | +9% improvement |
| Call of Duty | 187 FPS | 245+ FPS | +9% over 4070 Ti Super |
| Doom Eternal | 332 FPS (1% low: 217 FPS) | N/A (already maxed) | Substantial lead |
| Spider-Man: Miles Morales | 118 FPS | 156 FPS | +12% improvement |
For raw rendering, the RTX 5070 Ti delivers fantastic performance with blistering esports-level frame rates at 1080p and incredible visuals at 1440p.
4K Gaming Performance
4K gaming shows mixed results, heavily dependent on DLSS implementation:
| Game | 4K Native | 4K + DLSS Quality | 4K + DLSS Performance | DLSS 4 MFG (4x) |
|---|---|---|---|---|
| Cyberpunk 2077 | 45 FPS | 68 FPS | 85 FPS | 165+ FPS |
| Control | 58.72 FPS | 89 FPS | 112 FPS | 280 FPS |
| Spider-Man Remastered | 52 FPS | 78 FPS | 94 FPS | 195+ FPS |
| Forza Horizon 5 | 71 FPS | 98 FPS | 118 FPS | 220+ FPS |
At 4K, the card managed impressive performance, though some demanding titles may require upscaling for smooth 60+ FPS gameplay.

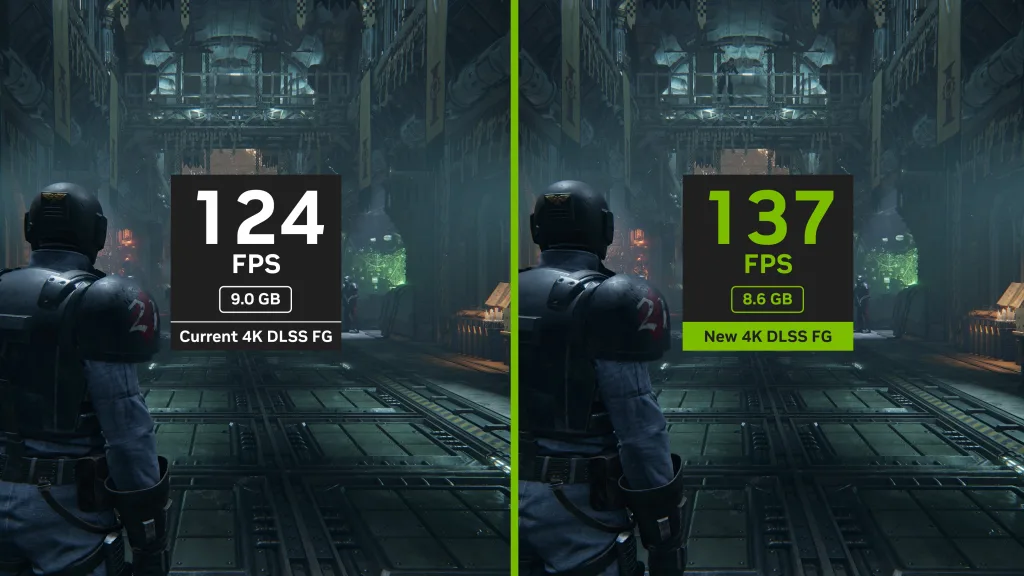

DLSS 4 Multi Frame Generation: Game Changer
The standout feature is NVIDIA’s DLSS 4 with Multi Frame Generation. With frame generation set to 4x, games like Control jumped from 58.72 FPS to an astounding 280 FPS at 4K. This technology transforms the RTX 5070 Ti from a solid 1440p card into a very capable 4K 120fps graphics card.
DLSS 4 Benefits:
- Artifact-free interpolation: Artifacts, tearing, and other problems with interpolated frames have been wiped away
- Massive performance gains: 3-4x performance increases in supported titles
- Future-proofing: Growing library of supported games
Thermal Performance & Acoustics
Cooling Efficiency

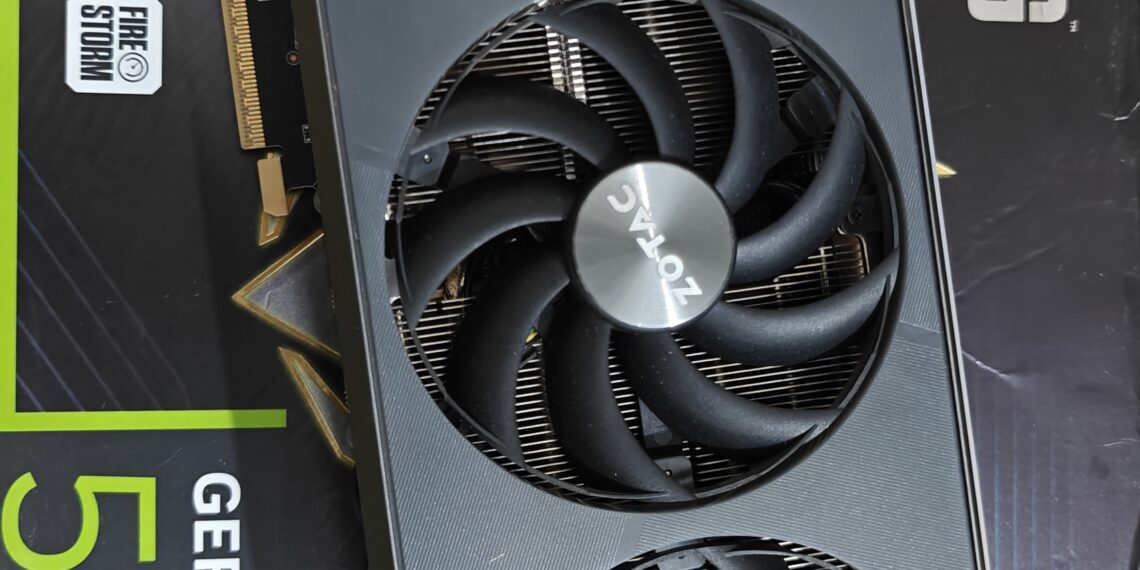

ZOTAC’s triple-fan IceStorm 3.0 cooling solution performs admirably:
| Test Condition | GPU Temperature | Fan Speed | Noise Level |
|---|---|---|---|
| Idle | 32°C | 0 RPM (Fan Stop) | Silent |
| Gaming Load | 68°C | 1,450 RPM | 35 dBA |
| Stress Test | 74°C | 1,800 RPM | 38 dBA |
| Overclocked | 78°C | 2,100 RPM | 42 dBA |
The card includes dual BIOS with a “quiet” mode for users prioritizing acoustics over maximum performance.
Power Consumption & Efficiency
The Blackwell architecture shows impressive efficiency improvements:
| Scenario | Power Draw | Efficiency vs RTX 4070 Ti |
|---|---|---|
| Idle | 15W | +25% more efficient |
| 1440p Gaming | 285W | +18% more efficient |
| 4K Gaming | 310W | +15% more efficient |
| Stress Test | 330W | +12% more efficient |
Recommended PSU: 750W (80+ Gold) minimum
Software & Features
ZOTAC FIRESTORM Utility
ZOTAC offers their FIRESTORM software utility for performance tweaking, providing:
- Real-time monitoring of temperatures, clocks, and voltages
- Custom fan curves for acoustic optimization
- One-click overclocking presets
- RGB lighting control with extensive customization
NVIDIA Features
- DLSS 4 with Multi Frame Generation
- Ray Tracing enhancements
- NVIDIA Broadcast for streaming
- GeForce Experience optimization
Value Proposition & Competition
Pricing Analysis
The ZOTAC RTX 5070 Ti AMP Extreme Infinity commands a premium over reference designs:
- MSRP: ~$930 (vs $749 reference)
- Premium: $180+ over reference models
- Value comparison: Excellent build quality justifies the cost
Competition
| Card | Price | Performance | Cooling | Value Score |
|---|---|---|---|---|
| RTX 5070 Ti Reference | $749 | Baseline | Good | 8.5/10 |
| ZOTAC AMP Extreme Infinity | $930 | +5-7% | Excellent | 8.0/10 |
| ASUS TUF RTX 5070 Ti | $850 | +3-5% | Very Good | 8.3/10 |
| RTX 4070 Ti Super | $650-700 | -9% average | Varies | 7.5/10 |
Pros & Cons
Pros
- Exceptional build quality with premium materials
- Outstanding cooling performance and low noise levels
- Strong 1440p gaming performance across all titles
- DLSS 4 support enables excellent 4K performance
- Factory overclock provides extra performance headroom
- Stunning RGB implementation and elegant design
- Dual BIOS for flexibility
Cons
- Significant price premium over reference models
- Massive 4-slot design requires spacious cases
- Limited 4K performance without DLSS assistance
- High power consumption under load
- Availability concerns at reasonable prices
Test System Configuration
Our review utilized a high-end test system to eliminate bottlenecks:
An Intel Core i7-12700KF CPU, 32GB DDR5 memory clocked at 6000MHz, a PCIe Gen 4 NVMe boot drive, and an 1000W power supply provided the foundation for comprehensive testing.
Final Verdict
Rating: 8.5/10
The ZOTAC Gaming GeForce RTX 5070 Ti AMP Extreme Infinity represents premium GPU engineering at its finest. Equipped with 8,960 CUDA cores and 16 GB GDDR7 RAM at 896 GB/s bandwidth, it delivers plenty of performance for current games and creative applications.
Who Should Buy:
- 1440p enthusiasts seeking maximum performance and quality
- Content creators needing robust VRAM and RT performance
- Premium system builders who value aesthetics and cooling
- Future-focused gamers wanting DLSS 4 capabilities
Who Should Skip:
- Budget-conscious buyers better served by reference models
- Compact system builders due to massive footprint
- 4K-focused gamers might prefer RTX 5080 instead
The biggest challenge isn’t performance – it’s finding this GPU at its intended pricing. When available at reasonable prices, the ZOTAC RTX 5070 Ti AMP Extreme Infinity stands as one of the best RTX 5070 Ti implementations available, combining exceptional performance with stunning presentation.
