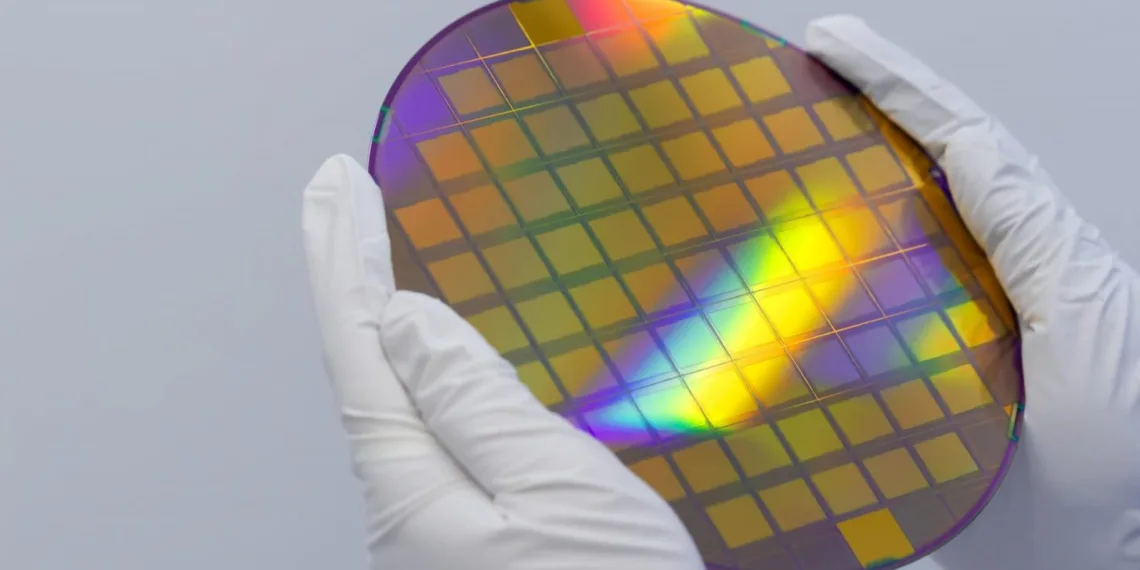

TSMC Opens 2nm Wafer Orders from April 1: Apple Likely First in Line

Taiwan Semiconductor Manufacturing Company (TSMC) is set to begin accepting orders for its highly anticipated 2nm wafers starting April 1, marking a significant milestone in semiconductor innovation. Reports indicate that the company aims for a monthly production output of 50,000 wafers by the end of 2025, surpassing demand levels seen with its 3nm process. This development is a major leap in the semiconductor industry, signaling a new era of power-efficient and high-performance chipsets.

TSMC’s 2nm Breakthrough: What It Means for the Semiconductor Industry

The race to develop smaller and more efficient semiconductor nodes has been intense, with TSMC leading the charge. The introduction of the 2nm process represents a remarkable advancement over its predecessors. By transitioning to 2nm technology, TSMC is pushing the boundaries of Moore’s Law, enabling higher transistor density, improved power efficiency, and increased performance.

Industry analysts predict that TSMC’s 2nm process will provide a 10-15% performance boost and up to 30% power savings compared to its 3nm technology. This means devices powered by 2nm chips will be faster, more efficient, and capable of handling AI and machine learning applications with greater ease. The transition to smaller nodes is crucial in addressing the increasing power demands of modern electronics, making TSMC’s move a pivotal moment in the tech industry.

Apple to Secure the First Batch for A20 Chip in iPhone 18

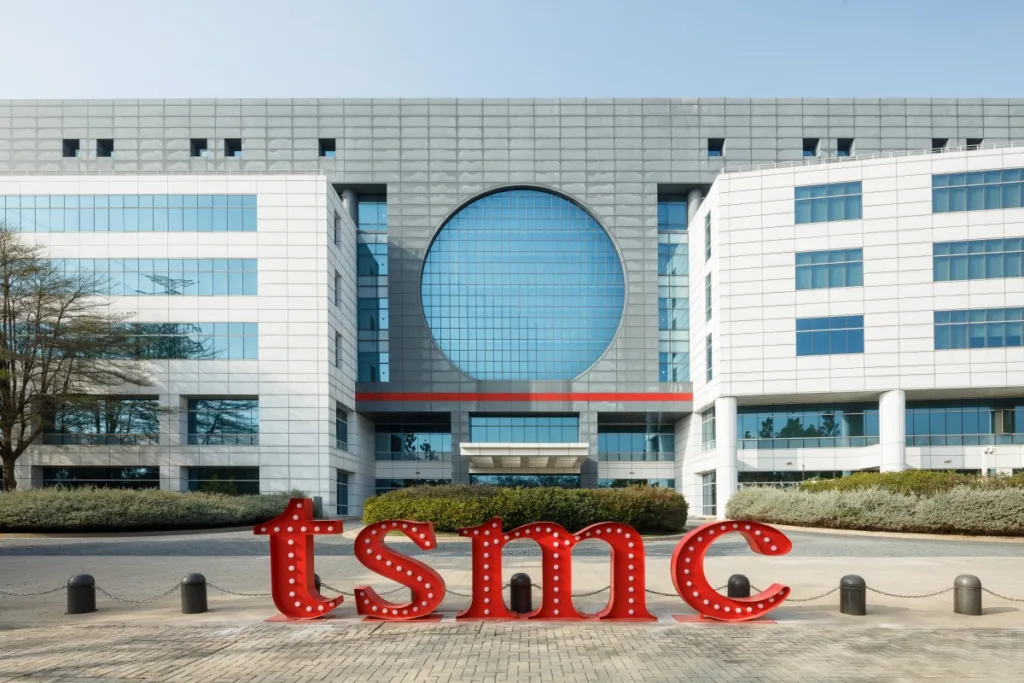

Two TSMC facilities, Kaohsiung and Baoshan, are gearing up for full-scale 2nm production. A production expansion ceremony in Kaohsiung is scheduled for March 31, with the first batch expected to arrive at Baoshan, Hsinchu, in late April. Apple is likely the first major client, expected to use the 2nm process for its A20 chip, powering the iPhone 18 series in the second half of 2026.

Apple has historically been one of TSMC’s most prominent customers, securing the most advanced fabrication processes for its A-series chips. The A20 processor, built on TSMC’s 2nm node, is expected to deliver significant improvements in battery life, AI processing, and overall system performance. Given Apple’s commitment to delivering cutting-edge technology in its devices, adopting the 2nm process aligns perfectly with its vision for the future.

Aside from the iPhone 18, Apple’s M-series chips for Macs and iPads could also benefit from the 2nm process. The M3 and M4 chips, expected to be based on 3nm technology, might eventually transition to 2nm in later iterations, solidifying Apple’s leadership in high-performance, energy-efficient computing.

Growing Demand from Tech Giants

Beyond Apple, industry leaders like AMD, Intel, Broadcom, and AWS are reportedly in line for TSMC’s 2nm technology. These companies are expected to leverage the advanced node for various applications, ranging from high-performance computing to AI-driven workloads.

AMD and Intel’s Interest in 2nm

AMD and Intel have been fierce competitors in the semiconductor space, with both companies striving to deliver superior CPUs and GPUs. AMD, which has heavily relied on TSMC’s manufacturing expertise, is likely to adopt the 2nm process for its next-generation Ryzen and EPYC processors. With enhanced efficiency and higher clock speeds, AMD’s 2nm chips could provide a competitive edge in both consumer and enterprise markets.

Intel, historically known for its in-house chip fabrication, has increasingly turned to TSMC for manufacturing support. The company’s reliance on external foundries has grown due to the challenges in its own process development. If Intel secures TSMC’s 2nm wafers, it could integrate them into future Xeon and Core-series processors, bolstering its presence in the server and PC markets.

Broadcom, AWS, and AI Workloads

Broadcom and AWS, both key players in the cloud and AI space, are expected to be major customers of TSMC’s 2nm node. As AI models grow larger and more complex, the need for power-efficient, high-performance chips becomes crucial. With data centers consuming vast amounts of energy, the transition to 2nm chips could significantly reduce power consumption while maintaining computational performance.

AWS, which develops custom silicon for its cloud services (such as Graviton processors), may leverage TSMC’s 2nm technology to enhance its next-gen server chips. By optimizing energy efficiency, AWS can offer cost-effective cloud computing solutions, further expanding its dominance in the market.

Production Scalability: TSMC’s 50,000 Wafer Target

To meet growing demand, TSMC has set an ambitious target of 50,000 wafers per month by late 2025, with the potential to ramp up to 80,000 units if both Kaohsiung and Baoshan facilities operate at full capacity. This expansion reflects TSMC’s confidence in its 2nm technology and its ability to scale production efficiently.

The semiconductor giant has made substantial investments in infrastructure and talent to ensure a smooth transition to mass production. With supply chain challenges impacting the tech industry in recent years, TSMC’s ability to meet demand without delays will be closely monitored by customers and competitors alike.

Cost Optimization Through CyberShuttle Service

Each 2nm wafer is estimated to cost around $30,000, but TSMC plans to lower costs for clients by launching a ‘CyberShuttle’ service in April. This program allows multiple customers to test their chip designs on the same wafer, reducing expenses and accelerating development.

CyberShuttle is a game-changer for semiconductor companies that need to test chip prototypes before committing to full-scale production. By enabling multiple clients to share test wafers, TSMC is fostering a more collaborative and cost-efficient approach to semiconductor R&D. This move not only helps startups and smaller firms gain access to advanced fabrication processes but also streamlines innovation cycles for larger enterprises.

The Future of 2nm and Beyond

With TSMC’s cutting-edge 2nm node entering mass production, the industry is set to witness groundbreaking performance and efficiency improvements. The first 2nm-powered devices are expected to launch in 2026, with Apple’s A20 chip leading the charge.

Looking beyond 2nm, TSMC has already begun research into 1.4nm technology, pushing the boundaries of semiconductor miniaturization even further. As competition intensifies, companies like Samsung and Intel are also advancing their next-generation nodes, setting the stage for an exciting decade in chip manufacturing.

With AI, 5G, and edge computing driving demand for high-performance chips, the semiconductor industry will continue to evolve rapidly. TSMC’s leadership in 2nm fabrication positions it as a key enabler of future technological advancements, shaping the next generation of computing and connectivity.

Conclusion

TSMC’s decision to commence 2nm wafer orders from April 1 is a landmark moment in the semiconductor industry. With Apple leading the charge and other tech giants eagerly awaiting their share, the transition to 2nm will redefine performance and efficiency standards in computing.

As production ramps up, all eyes will be on TSMC’s ability to meet demand and optimize costs through initiatives like CyberShuttle. Whether in smartphones, data centers, AI applications, or cloud computing, 2nm technology is set to power the future of innovation. Stay tuned for more updates as we move closer to the launch of the first 2nm-powered devices in 2026.
