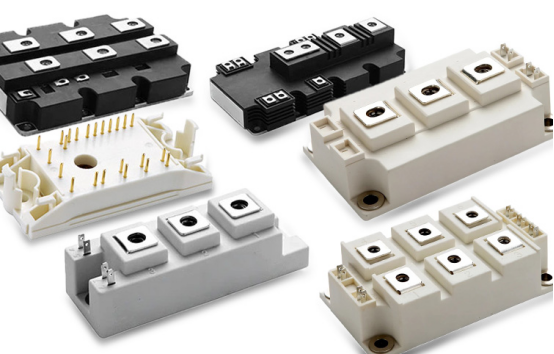

Introduction
In power electronics systems, effective IGBT module heat dissipation is a critical factor that directly affects device reliability, efficiency, and service life. Due to inherent power losses during operation, IGBT modules inevitably generate heat. If this heat is not properly managed, excessive temperature rise may lead to performance degradation or even device failure. Therefore, thermal design must be carefully considered during system development.
Temperature Rise and Thermal Resistance Fundamentals
Under specific enclosure and cooling conditions, power devices experience a temperature rise, defined as the difference between the case temperature and ambient temperature. The surface area of the IGBT module package plays a significant role in determining this temperature rise.
A simplified estimation can be expressed as:
Temperature rise = Thermal resistance × Power dissipation
For blackened copper housings such as the P25xxx package (used in the SMP-1250 series), the thermal resistance is approximately 3.76 °C/W under natural convection conditions. These values are measured with the power device mounted vertically, with a 1 cm clearance underneath and free air circulation.
In high-temperature environments, IGBT modules should be derated to reduce power dissipation and limit temperature rise, ensuring the case temperature remains within specified limits. For higher-power applications, additional heat sinks are required to further reduce thermal resistance.
Different heat sinks exhibit different thermal resistance values under natural convection. The dominant factor affecting heat sink performance is surface area. When finned heat sinks are used, fin orientation should allow unobstructed natural airflow to enhance convection efficiency—an important consideration in IGBT module heat sink design.
Engineering Design Perspective on Thermal Management
From a thermal engineering perspective, evaluating IGBT module performance requires more than simply calculating power loss. Engineers must consider the complete thermal path from the semiconductor junction to the ambient environment.
Key aspects include:
- Accurate thermal resistance calculation for IGBT modules, covering junction-to-case, case-to-heat-sink, and heat-sink-to-ambient paths
- Effective junction temperature control in IGBT modules, ensuring the junction temperature remains well below its maximum rated limit
- Mechanical mounting quality, thermal interface materials, and airflow conditions
A comprehensive thermal model allows designers to predict temperature rise under real operating conditions and select appropriate cooling structures early in the design process.
Power Density and Operating Constraints
All power devices generate heat due to internal power consumption. In every application, this self-heating must be limited to prevent the device case temperature from exceeding its maximum rating.
Most power semiconductor manufacturers use power density, typically expressed in watts per cubic inch (W/in³), as a key metric to evaluate device performance. However, understanding the test conditions under which power density is defined is essential.
If a power device cannot operate within the specified maximum ambient temperature range, it may not achieve its rated output power. The usable average output power—effectively the available power density—depends on several factors:
1. Required output power
2. Thermal impedance (°C/W), representing temperature rise per unit power loss
3. Maximum allowable case temperature
4. Worst-case ambient operating temperature
Selecting a suitable heat sink is therefore a fundamental requirement for reliable IGBT module operation.
Key Thermal Parameters in IGBT Module Design
Thermal design of power devices relies on several essential parameters:
- Junction temperature (Tj): the maximum allowable operating temperature of the semiconductor junction
- Power dissipation (Pz): the average steady-state power loss generated during operation
- Heat dissipation capability (Q): the cooling capacity of the selected thermal structure
- Thermal resistance (R): the temperature rise caused by unit power flow through a thermal medium
Maintaining safe thermal margins across these parameters is crucial for long-term reliability.
Comparison of Common IGBT Module Cooling Methods
Selecting an appropriate cooling method is a key part of IGBT module thermal design. Different application environments, power levels, and reliability requirements call for different heat dissipation strategies. The most commonly used IGBT module cooling methods are compared below.
Natural Convection Cooling
Natural convection cooling relies on ambient air movement to remove heat from the IGBT module and heat sink surface.
Advantages:
- Simple structure and low cost
- High reliability due to the absence of moving parts
- Suitable for low to medium power IGBT modules
Limitations:
- Limited heat dissipation capability
- Strongly affected by ambient temperature and installation orientation
Natural convection is often used in low-power industrial control systems or applications where space and maintenance constraints are minimal.
Forced Air Cooling
Forced air cooling uses fans or blowers to enhance airflow across the heat sink, significantly improving heat transfer efficiency.
Advantages:
- Lower thermal resistance compared to natural convection
- Flexible and widely used in industrial applications
- Effective for medium to high power density IGBT modules
Limitations:
- Increased system complexity
- Fan reliability and maintenance requirements
- Potential noise issues
Forced air cooling is one of the most common IGBT module cooling solutions in industrial inverters and power conversion systems.
Liquid Cooling
Liquid cooling removes heat through a coolant medium, typically water or a specialized cooling fluid, flowing through cold plates attached to the IGBT module.
Advantages:
- Excellent heat dissipation capability
- Suitable for very high power and high power density systems
- Enables compact system design
Limitations:
- Higher system cost and complexity
- Risk of leakage and additional maintenance
- Requires careful system integration
Liquid cooling is frequently adopted in renewable energy inverters, traction systems, and high-performance industrial equipment where air cooling is insufficient.
Heat Sink Design Considerations
Regardless of the cooling method used, effective IGBT module heat sink design remains essential. Key factors include heat sink material, surface area, fin geometry, airflow direction, and the quality of thermal interface materials. Optimizing these parameters helps reduce overall thermal resistance and improves junction temperature control.
Engineering Selection Guidelines
In practical engineering applications, the choice of cooling method should be based on:
Power dissipation level
Ambient temperature conditions
System size and cost constraints
Long-term reliability requirements
By comparing cooling methods early in the design phase, engineers can select the most suitable solution to ensure stable and efficient IGBT module operation.
The choice of cooling method directly affects IGBT module performance in real-world applications, which will be discussed in the following section.”
Typical Application Scenarios and Thermal Challenges
Industrial Variable Frequency Drives (VFDs)
In industrial inverters and motor drives, IGBT modules often operate under continuous load with frequent switching. Limited airflow inside control cabinets and high switching losses pose significant thermal challenges, requiring robust cooling solutions.
Renewable Energy Inverters and High Power Density Systems
In photovoltaic and wind power inverters, increasing power density leads to higher heat flux within compact enclosures. Without effective IGBT module cooling solutions, excessive junction temperatures may reduce efficiency and shorten device lifespan.
High Ambient Temperature Environments
In applications such as enclosed control cabinets or outdoor installations, elevated ambient temperatures significantly reduce the allowable thermal margin. In these cases, enhanced heat sinks, forced-air cooling, or optimized layout are necessary to maintain thermal stability.
Industry Standards and Engineering Best Practices
In practical engineering design, IGBT module thermal management should follow established industry standards and proven engineering practices to ensure consistent performance, operational safety, and long-term system reliability.
Conclusion
Thermal management plays a decisive role in the performance and reliability of IGBT modules. As power densities continue to rise and system integration increases, careful attention to heat dissipation, thermal resistance, and junction temperature control becomes even more critical. By applying sound thermal design principles and selecting appropriate cooling solutions, engineers can significantly enhance the durability and efficiency of modern power electronic systems.
