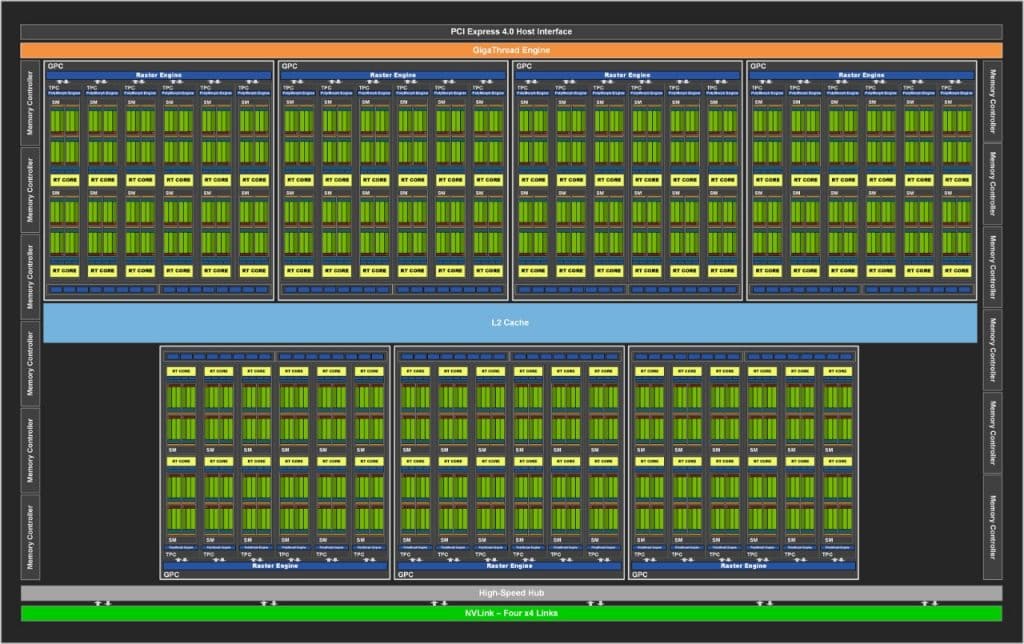

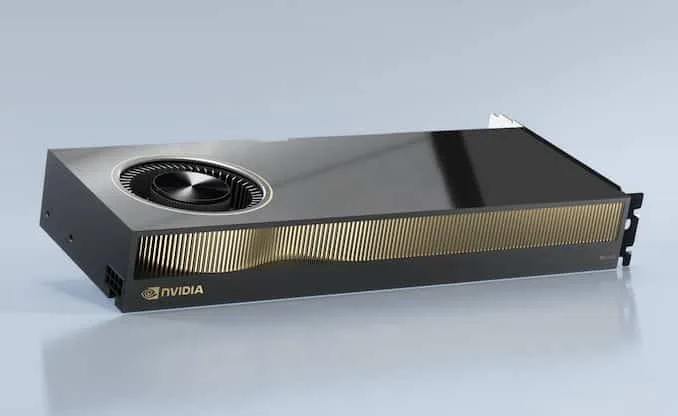

NVIDIA’s latest flagship workstation graphics card, the RTX A6000, comes with GA102 Ampere GPU. The card is made for content creation and AI applications. The RTX A6000 comes with 84 SMs or 10752 CUDA cores. The green team has confirmed that the card features 38.7 TFLOPs of FP32 performance.
The green team announced that it would ship the card with its latest RTX Enterprise Drivers, which deliver long-term stability and availability. It also promised to provide enterprise customers with hardware certification from ISV’s and OEMs.
The NVIDIA RTX A6000 features 48 GB of GDDR6 memory. It also offers 768 GB/s speeds with its 16 Gbps memory dies. Interconnect comes in the form of the latest NVLINK, which offers 112.5 GB/s (bi-directional) speeds. The RTX A6000 cards support vGPU with various graphics configurations starting at 1 GB up to the whole 48 GB VRAM buffer. The full display options for the card includes four DisplayPort 1.4 on the A6000.
NVIDIA Quadro RTX Series Graphics Card Lineup:
| Graphics Card | Quadro RTX A4000 | Quadro RTX A5000 | Quadro RTX A40 | Quadro RTX A6000 |
| GPU | Ampere GPU | Ampere GPU | Ampere GPU | Ampere GPU |
| GPU Process | 8nm | 8nm | 8nm | 8nm |
| Die Size | 392mm² | 628mm² | 628mm² | 628mm² |
| GPU Cores | TBA | TBA | 10752 Cores | 10752 Cores |
| Tensor Cores | TBA | TBA | 656 Cores | 656 Cores |
| Boost Clock | TBA | TBA | TBA | 1.80 GHz |
| Single-Precision | TBA | TBA | TBA | 38.7 TFLOPs |
| Ray Tracing Spec | TBA | TBA | TBA | TBA |
| VRAM | 16 GB GDDR6 | 24 GB GDDR6 | 48 GB GDDR6 | 48 GB GDDR6 |
| NVLINK VRAM | N/A | 48 GB With NVLINK | 96 GB With NVLINK | 96 GB With NVLINK |
| Memory Bus | 256-bit | 384-bit | 384-bit | 384-bit |
| Memory Bandwidth | 512 GB/s | 768 GB/s | 696 GB/s | 768 GB/s |
| TDP | ~150W | ~230W | 300W | 300W |
| Price | TBA | TBA | TBA | $4650 US |
| Launch Date | Q1 2021? | Q4 2020? | Q4 2020 | Q4 2020 |
