Video wall style displays are often impressive and effective. They are 100 inches or wider diagonally and are used mostly in a professional environment. But however, the display being advantageous also has many demerits. One of them being that many conventional displays make use of LCDs.
Viewsonic has resolved to provide LED-based displays to solve these problems while also offering a streamlined viewing experience.
Multiple LCD displays are associated with the disadvantages of needing multiple different controllers or systems to show the image or video as intended.
Many old screen walls needed to be installed with many individual LCD panels. This made the individual display’s to be connected with wires and resulted in a lot of work and maintenance.
The company claims to have solved all these problems with its new LED display. The OEM has consolidated all the systems needed to operate multiple wall displays into one device.

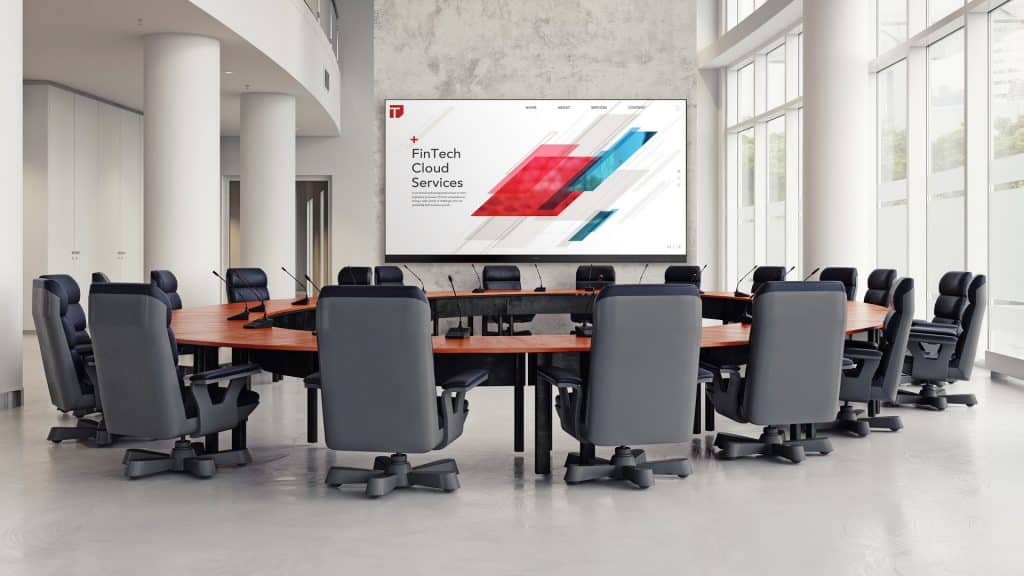

The new 216 inches LED display also has a potentially enhanced viewing experience. The company also claims that its streamlined design means that the display can be installed by as few as 2 people.
Specifications
| Screen Size | 216” |
| Display Area (mm) | 4800 (H) x 2700(V) |
| Native Resolution | 1920×1080 |
| Tech | Direct view LED |
| Pitch Size | 2.5mm |
| Refresh frequency | 3840hz |
| Brightness (max) | 600 nits (8 levels adujstable) |
| Contrast Ratio (typ) | 6000:1 |
| Viewing Angles (typ) | H = 160, V = 160 |
| LED Lifetime (typ) | 100,000 Hours |
| Local Storage | Total 32GB , (26GB available storage) |
| Resolution Support | HDMI(640 x 480) to , 1080p(1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 31K-94KHz |
| Vertical Scan Rate | 56-85Hz |
Control
| RJ45 (LAN control) | 1(share with Internet) |
| USB Type A (Services) | 1(share with USB A Input) |
| USB Type B (Debug) | 1 |
| RS232 (DB 9-pin female) | 1 |
| IR Receiver | 1 |
