According to the latest sources, we have found the leaked specification of Nvidia’s upcoming GeForce RTX 3080 Ti graphics card. And it’s not just the specifications that have been leaked but we also get a treat at the mining performance of the card.
NVIDIA will be using a more strict BIOS Firmware lock to enforce hash rate limit on the GeForce RTX 3080 Ti graphics card & revised Ampere cards but it is being stated that the card which is leaked here could be one of the qualification samples that didn’t implement the new hardware locks to prevent it from use in mining operations.
According to sources, the alleged graphics cards delivers a mining hash rate of around 119 MH/s (after optimizations) in Ethereum. The card was tweaked to deliver a TDP of 278W and also to operate at 21.4 Gbps instead of its standard 19 Gbps out-of-the-box speeds.

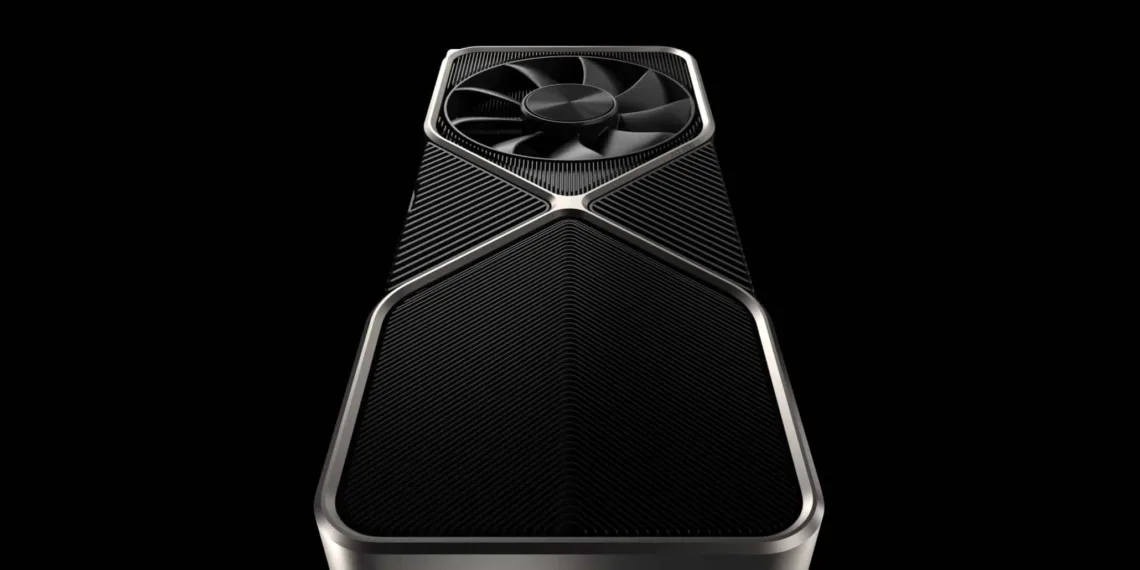

Coming to the specifications, NVIDIA’s GeForce RTX 3080 Ti 12 GB FE (Founders Edition) graphics card will feature the PG132-SKU18 PCB design and the GA102-225-KD-A1 graphics core. The GA102-225 GPU will now feature 10240 CUDA cores within a total of 80 SM units and the GPU features a clock speed of 1365 MHz base and 1665 MHz boost.
In terms of memory, the GeForce RTX 3080 Ti will have the same memory speed as the RTX 3080 which is at 19 Gbps. Sporting a 12 GB memory, the card will be using a 384-bit bus interface which equals a total bandwidth of 912 GB/s.
NVIDIA GeForce RTX 30 Series ‘Ampere’ Graphics Card Specifications:
| Graphics Card Name | NVIDIA GeForce RTX 3050 | NVIDIA GeForce RTX 3050 Ti | NVIDIA GeForce RTX 3060 | NVIDIA GeForce RTX 3060 Ti | NVIDIA GeForce RTX 3070 | NVIDIA GeForce RTX 3070 Ti? | NVIDIA GeForce RTX 3080 | NVIDIA GeForce RTX 3080 Ti? | NVIDIA GeForce RTX 3090 |
| GPU Name | Ampere GA107 | Ampere GA106? | Ampere GA106-300 | Ampere GA104-200 | Ampere GA104-300 | Ampere GA104-400 | Ampere GA102-200 | Ampere GA102-225? | Ampere GA102-300 |
| Process Node | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm |
| Die Size | TBA | TBA | TBA | 395.2mm2 | 395.2mm2 | 395.2mm2 | 628.4mm2 | 628.4mm2 | 628.4mm2 |
| Transistors | TBA | TBA | TBA | 17.4 Billion | 17.4 Billion | 17.4 Billion | 28 Billion | 28 Billion | 28 Billion |
| CUDA Cores | 2304? | 3584? | 3584 | 4864 | 5888 | 6144? | 8704 | 10240? | 10496 |
| TMUs / ROPs | TBA | TBA | 112 / 64 | 152 / 80 | 184 / 96 | 192/ 104? | 272 / 96 | 320 / 112? | 328 / 112 |
| Tensor / RT Cores | TBA | TBA | 112 / 28 | 152 / 38 | 184 / 46 | 192/ 48? | 272 / 68 | 320 / 76? | 328 / 82 |
| Base Clock | TBA | TBA | 1320 MHz | 1410 MHz | 1500 MHz | TBA | 1440 MHz | 1365 MHz | 1400 MHz |
| Boost Clock | TBA | TBA | 1780 MHz | 1665 MHz | 1730 MHz | TBA | 1710 MHz | 1665 MHz | 1700 MHz |
| FP32 Compute | TBA | TBA | 12.7 TFLOPs | 16.2 TFLOPs | 20 TFLOPs | TBA | 30 TFLOPs | TBA | 36 TFLOPs |
| RT TFLOPs | TBA | TBA | 25.4 TFLOPs | 32.4 TFLOPs | 40 TFLOPs | TBA | 58 TFLOPs | TBA | 69 TFLOPs |
| Tensor-TOPs | TBA | TBA | 101 TOPs | 129.6 TOPs | 163 TOPs | TBA | 238 TOPs | TBA | 285 TOPs |
| Memory Capacity | 4 GB GDDR6? | 6 GB GDDR6? | 12 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 8-16 GB GDDR6X? | 10 GB GDDR6X | 12 GB GDDR6X | 24 GB GDDR6X |
| Memory Bus | 128-bit | 192-bit? | 192-bit | 256-bit | 256-bit | 256-bit | 320-bit | 384-bit | 384-bit |
| Memory Speed | TBA | TBA | 15 Gbps | 14 Gbps | 14 Gbps | TBA | 19 Gbps | 19 Gbps | 19.5 Gbps |
| Bandwidth | TBA | TBA | 360 Gbps | 448 Gbps | 448 Gbps | TBA | 760 Gbps | 912 Gbps | 936 Gbps |
| TGP | 90W? | TBA | 170W | 200W | 220W | 250W? | 320W | 320W | 350W |
| Price (MSRP / FE) | $149? | $199? | $329 | $399 US | $499 US | $599 US? | $699 US | $999 US? | $1499 US |
| Launch (Availability) | 2021? | 2021? | February 2021 | December 2020 | 29th October | May 2021? | 17th September | May 2021? | 24th September |
