Colorful Technology Company Limited, a professional manufacturer of graphics cards, motherboards, all-in-one gaming, and multimedia solutions, and high-performance storage, proudly presents its lineup of Intel Z790 Series motherboards for the Raptor Lake-based 13th generation Intel Core processors.
COLORFUL presents a selection of ATX and micro-ATX motherboards under the enthusiast-class CVN Series and all-rounder micro-ATX BATTLE-AX Series motherboard. The COLORFUL Z790 Series motherboard lineup will feature DDR5 and DDR4 memory support in distinct motherboard models.

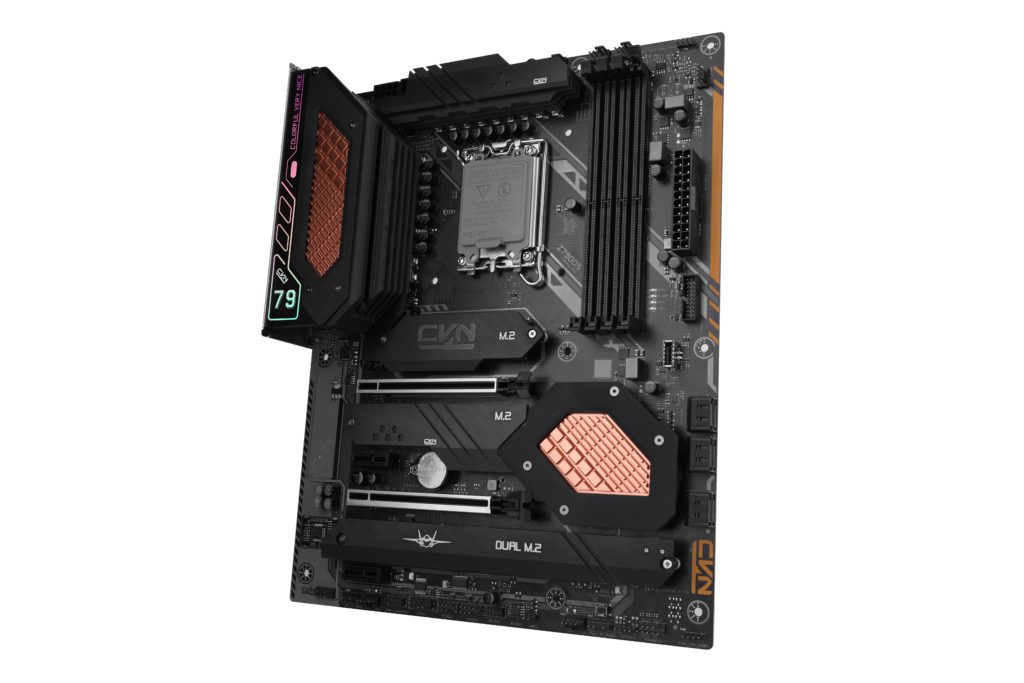

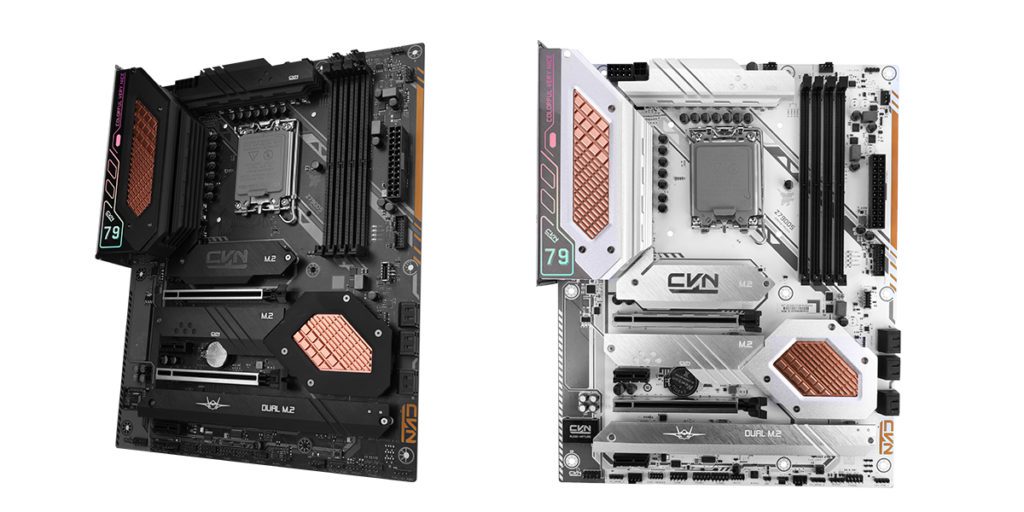

CVN Z790D5 GAMING FROZEN and CVN Z790D5 GAMING PRO
The CVN Z790D5 GAMING FROZEN and CVN Z790D5 GAMING PRO motherboards are designed for enthusiasts looking into maximizing the performance out of the 13th generation Intel Core processors with its 16+1+1 (55A) power phase and 6-layered PCB design. Both motherboards come with four PCIe Gen4x4 M.2 slots for NVMe SSDs
Key Features
- Support for 12th Gen and 13th Gen Intel Core Processors
- Intel Z790 Chipset
- 16+1+1 Power Phase Design
- DDR5 memory support, up to DDR5-6400 (OC)
- 4X PCIe Gen4x4 M.2 slots
- 2.5 GbE LAN + Wi-Fi 6 (GAMING FROZEN)
Specifications
| CPU | Intel® 13th & 12th Generation Core™ Processor |
| Chipset | Intel Z790 |
| Power supply phase | 16+1+1 (55A) Power Phase |
| Memory support: | 4*DDR5 DIMM Socket Dual-channel, supports DDR5 6400/6200/5600/4800 memory |
| Expansion Slots | 1*PCI-E 5.0 x16,1*PCI-E4.0 x4,2*PCI-E 3.0 x1 |
| Storage | Support 4 x M.2 slots and 6 x SATA 6Gb/s1*M.2_1: Type 2242/2260/2280(CPU) (PCIE GEN4 X4)1*M.2_2: Type 2242/2260/2280(PCH) (PCIE GEN4 X4)1*M.2_3: Type 2242/2280(PCH) (PCIE GEN4 X 4)1*M.2_4: Type 2242/2260/2280(PCH) (PCIE GEN4 X4) |
| Wireless LAN/BT | GAMING FROZEN: RTL8125GB-V2.5G LAN (2.5G); WIFI 6GAMING PRO: RTL8125GB-V2.5G LAN (2.5G) |
| Internal Connectors | 1*24-pin ATX Power Supply connector1*8-pin 12V Power connector1*4-pin 12V Power connector4*USB2.0;2*USB3.2 GEN1(5G);1*USB3.2 GEN1 5G(Type-C) |
| I/O Ports | 4*USB 3.2 GEN1 5G Type-A1*USB 3.2 Gen 2 20G Type-C1*USB 3.2 Gen 2 10G Type-ADP+HDMIBIOS Update Button |
| Audio | 8-Channel High-Definition audio CODEC |
| FORM FACTOR | 245mm*305mm |
CVN Z790M FROZEN D5
The CVN Z790M FROZEN D5 micro-ATX motherboard is a compact powerhouse, ideal for enthusiasts that want a smaller build without compromising on performance and features. The CVN Z790M FROZEN D5 motherboard features a 12+1 power phase design for modest overclocking. It comes with three PCIe Gen4x4 M.2 slots offering plenty of NVMe SSD support. This motherboard is also fitted with Realtek 2.5 GbE LAN and Wi-Fi 6.
Key Features
- Support for 12th Gen and 13th Gen Intel Core Processors
- Intel Z790 Chipset
- 12+1 Power Phase Design
- DDR5 memory support, up to DDR5-6400 (OC)
- 3X PCIe Gen4x4 M.2 slots
- 2.5 GbE LAN + Wi-Fi 6
| CPU | Intel® 13th & 12th Generation Core™ Processor |
| Chipset | Intel Z790 |
| Power supply phase | 12+1 (55A) Power Phase |
| Memory support: | 4*DDR5 DIMM Socket Dual-channel supports DDR5 6400/6200/5600/4800 memory |
| EXPANSION SLOT | 1*PCI-E 5.0 x16,1*PCI-E 3.0 x4 |
| Storage | Support 3 x M.2 slots and 4 x SATA 6Gb/s1*USB 3.2 Gen 1 Type-C;2*USB 3.2 Gen 1 Type-A2*USB 2.0 |
| Wireless LAN/BT | RTL8125GB-V2.5G LAN (2.5G); WIFI 6 |
| Internal Connectors | 1*24-pin ATX Power Supply connector1*8-pin 12V Power connector1*4-pin 12V Power connector4*USB2.0;2*USB3.2 GEN1 (5G);1*USB3.2 GEN1 5G (Type-C) |
| I/O Ports | 1*USB 3.2 Gen 2 Type-C;1*USB 3.2 Gen 2 Type-A;2*USB 3.2 Gen 1 Type-A;4*USB 2.0DP+HDMIBIOS Update Button |
| Audio | 8-Channel High-Definition audio CODEC |
| FORM FACTOR | 245mm*245mm |
BATTLE-AX Z790M-PLUS D5
The BATTLE-AX Z790M-PLUS is a perfect all-rounder micro-ATX motherboard featuring DDR5 memory support, three M.2 slots, and a 2.5 GbE LAN.
Key Features
- Support for 12th Gen and 13th Gen Intel Core Processors
- Intel Z790 Chipset
- 12+1 Power Phase Design
- DDR5 memory support, up to DDR5-6400 (OC)
- 3X PCIe Gen4x4 M.2 slots
- 2.5 GbE LAN
| CPU | Intel® 13th & 12th Generation Core™ Processor |
| Chipset | Intel Z790 |
| Power supply phase | 12+1 (55A) Power Phase |
| Memory support: | 4*DDR5 DIMM Socket Dual-channel supports DDR5 6400/6200/5600/4800 memory |
| Expansion Slots | 1*PCI-E 5.0 x16,1*PCI-E 3.0 x4 |
| Storage | Support 3x M.2 slots and 4 x SATA 6Gb/s1*USB 3.2 Gen 1 Type-C;2*USB 3.2 Gen 1 Type-A;2*USB 2.0 |
| Wireless LAN/BT | RTL8125GB-V2.5G LAN (2.5G) |
| Internal Connectors | 1*24-pin ATX Power Supply connector1*8-pin 12V Power connector1*4-pin 12V Power connector4*USB2.0;2*USB3.2 GEN1 (5G);1*USB3.2 GEN1 5G (Type-C) |
| I/O Ports | 1*USB 3.2 Gen 2 Type-C;1*USB 3.2 Gen 2 Type-A;2*USB 3.2 Gen 1 Type-A;4*USB 2.0DP+HDMIBIOS Update Button |
| Audio | 8-Channel High-Definition audio CODEC |
| Form Factor | 245mm*245mm |
DDR4 Memory Support: CVN Z790 GAMING FROZEN and CVN Z790M FROZEN
COLORFUL also presents the CVN Z790 GAMING FROZEN and CVN Z790M FROZEN motherboards, both featuring DDR4 memory support for builders looking into a cheaper way to upgrade to the new Intel 13th generation platform. Builder has an ATX motherboard option with the CVN Z790 GAMING FROZEN and a compact micro-ATX option with the CVN Z790M FROZEN motherboard.
Pricing and Availability
The COLORFUL Z790 Series motherboards will be available on partner resellers shortly after Intel’s launch.
