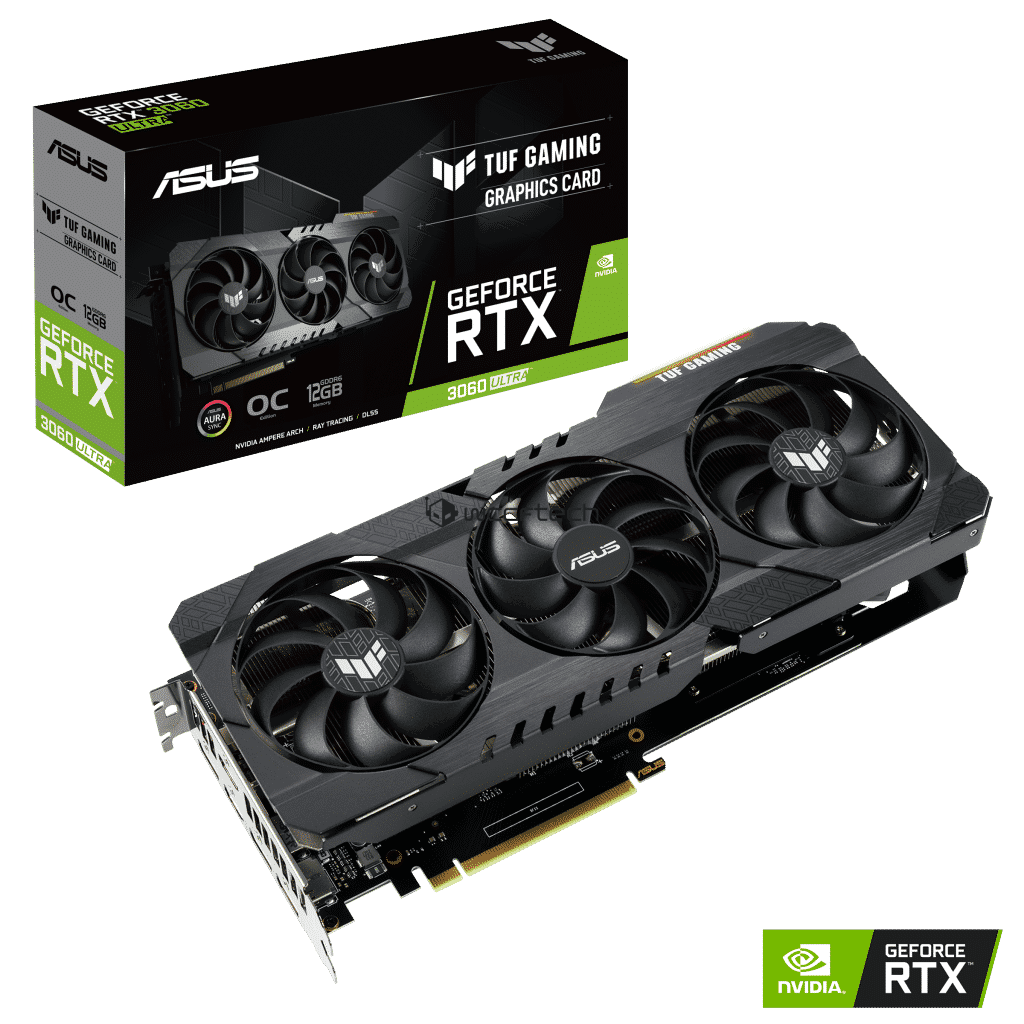

We spotted a leak on the internet which is regarding the upcoming NVIDIA GeForce RTX 3060 graphics card. Much awaited pictures of a custom GeForce RTX 3060 graphics card designed by ASUS have been leaked and sources claim that the 12 GB models will be regarded as the NVIDIA GeForce RTX 3060 Ultra.
According to sources, NVIDIA plans to rebrand the GeForce RTX 3060 as the GeForce RTX 3060 Ultra. It is stated that the Ultra tier is spaced above the Ti and SUPER variants. So in the new cards, we can expect top of the line cooling solutions even though the GPU it is based on is a mainstream design.
Reports indicate that the GeForce RTX 3060 Ultra will feature 12 GB of GDDR6 memory which is more than the GeForce RTX 3060 Ti, GeForce RTX 3070, and GeForce RTX 3080 cards. ASUS will be offering the GeForce RTX 3060 Ultra in its upcoming ROG and TUF series models.

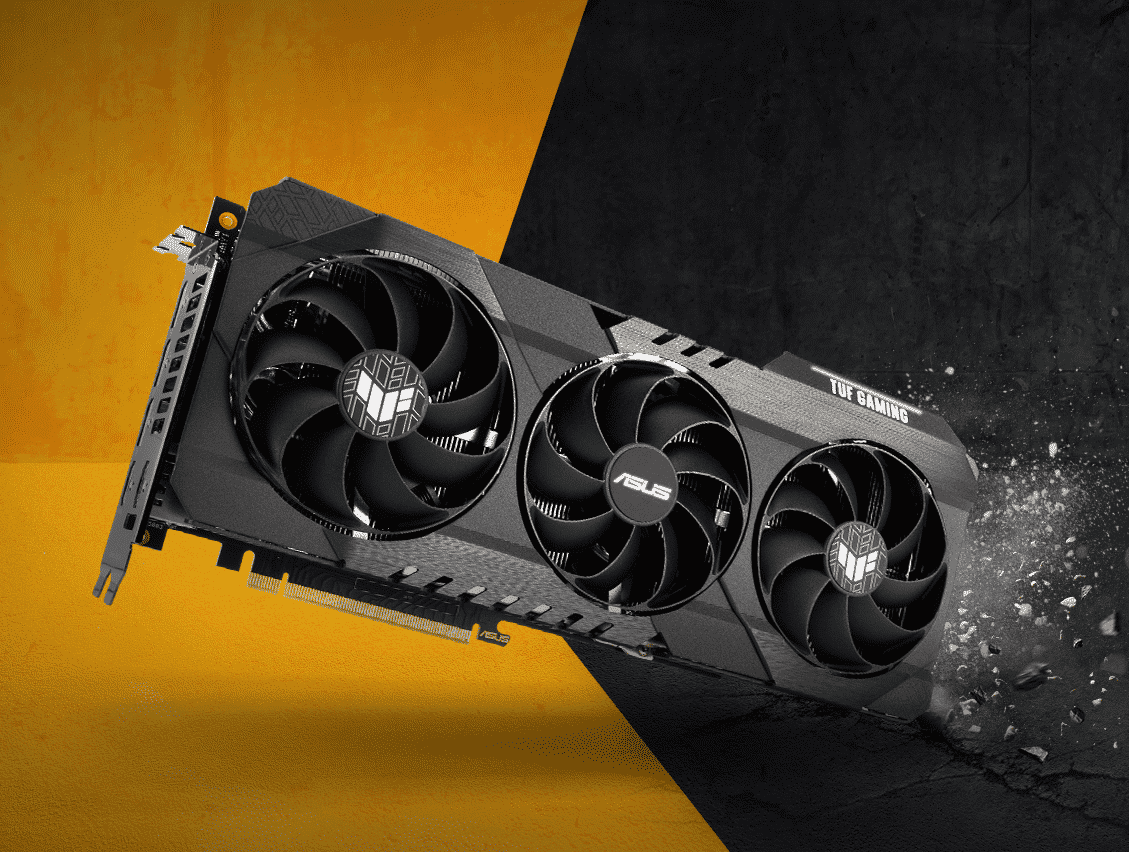

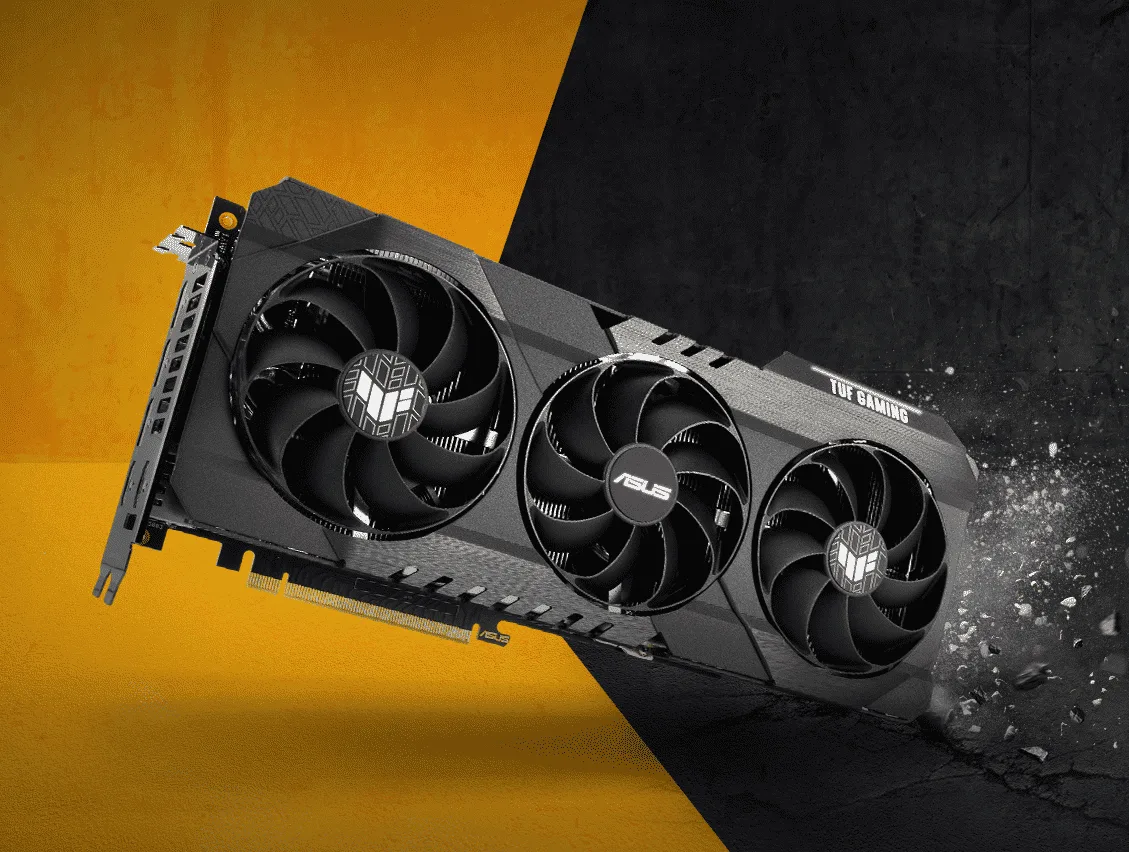

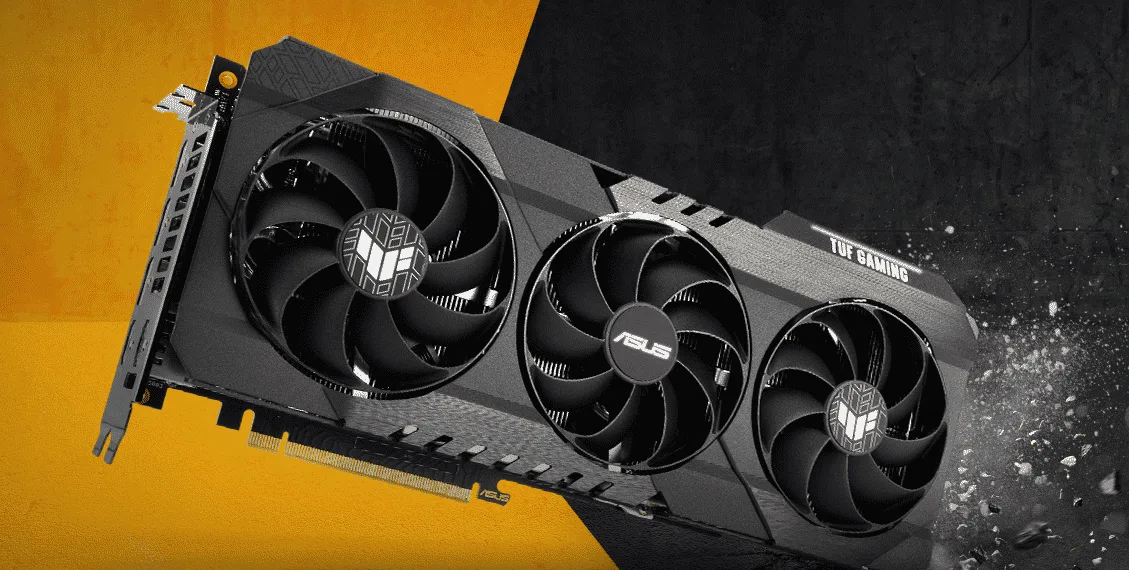

Another interesting thing about the card is that it will feature a 2.7 slot design along with a large aluminum shroud with three massive fans that come with 0dB technology. It might have either a single 8-pin or a dual 8-pin connector configuration and the display outputs include a single HDMI and 3 DisplayPort outputs.
NVIDIA GeForce RTX 30 Series ‘Ampere’ Specifications:
| Graphics Card Name | NVIDIA GeForce RTX 3050 | NVIDIA GeForce RTX 3050 Ti | NVIDIA GeForce RTX 3060 Ti | NVIDIA GeForce RTX 3060 Ultra | NVIDIA GeForce RTX 3070 | NVIDIA GeForce RTX 3070 Ti? | NVIDIA GeForce RTX 3080 | NVIDIA GeForce RTX 3080 Ti? | NVIDIA GeForce RTX 3090 |
| GPU Name | Ampere GA107 | Ampere GA106? | Ampere GA104-200 | Ampere GA104-250? | Ampere GA104-300 | Ampere GA102-150 | Ampere GA102-200 | Ampere GA102-250 | Ampere GA102-300 |
| Process Node | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm |
| Die Size | TBA | TBA | 395.2mm2 | TBA | 395.2mm2 | 628.4mm2 | 628.4mm2 | 628.4mm2 | 628.4mm2 |
| Transistors | TBA | TBA | 17.4 Billion | TBA | 17.4 Billion | 28 Billion | 28 Billion | 28 Billion | 28 Billion |
| CUDA Cores | 2304 | 3584 | 4864 | 3840 | 5888 | 7424 | 8704 | 10496 | 10496 |
| TMUs / ROPs | TBA | TBA | 152 / 80 | TBA | 184 / 96 | 232 / 80 | 272 / 96 | 328 / 112 | 328 / 112 |
| Tensor / RT Cores | TBA | TBA | 152 / 38 | TBA | 184 / 46 | 232 / 58 | 272 / 68 | 328 / 82 | 328 / 82 |
| Base Clock | TBA | TBA | 1410 MHz | TBA | 1500 MHz | TBA | 1440 MHz | TBA | 1400 MHz |
| Boost Clock | TBA | TBA | 1665 MHz | TBA | 1730 MHz | TBA | 1710 MHz | TBA | 1700 MHz |
| FP32 Compute | TBA | TBA | 16.2 TFLOPs | TBA | 20 TFLOPs | TBA | 30 TFLOPs | TBA | 36 TFLOPs |
| RT TFLOPs | TBA | TBA | 32.4 TFLOPs | TBA | 40 TFLOPs | TBA | 58 TFLOPs | TBA | 69 TFLOPs |
| Tensor-TOPs | TBA | TBA | TBA | TBA | 163 TOPs | TBA | 238 TOPs | TBA | 285 TOPs |
| Memory Capacity | 4 GB GDDR6? | 6 GB GDDR6? | 8 GB GDDR6 | 12 GB GDDR6 | 8 GB GDDR6 | 10 GB GDDR6X? | 10 GB GDDR6X | 20 GB GDDR6X | 24 GB GDDR6X |
| Memory Bus | 128-bit | 192-bit? | 256-bit | 192-bit | 256-bit | 320-bit | 320-bit | 320-bit | 384-bit |
| Memory Speed | TBA | TBA | 14 Gbps | TBA | 14 Gbps | TBA | 19 Gbps | 19 Gbps | 19.5 Gbps |
| Bandwidth | TBA | TBA | 448 Gbps | TBA | 448 Gbps | TBA | 760 Gbps | 760 Gbps | 936 Gbps |
| TGP | 90W? | TBA | 180W? | TBA | 220W | 320W? | 320W | 320W | 350W |
| Price (MSRP / FE) | $149? | $199? | $399 US? | $299? | $499 US | $599 US? | $699 US | $899 US? | $1499 US |
| Launch (Availability) | 2021? | 2021? | November 2020? | 2021? | 29th October | Q4 2020? | 17th September | January 2021? | 24th September |
